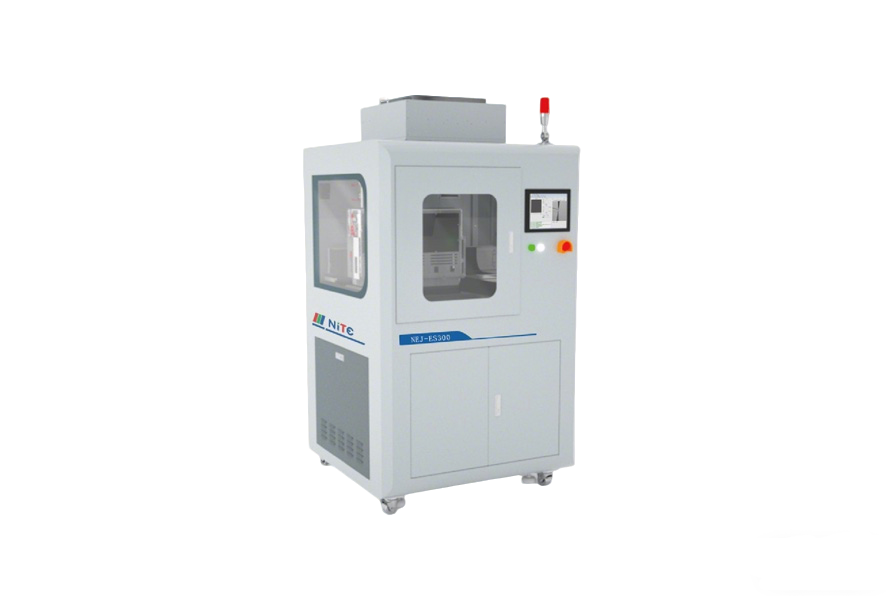

NEJ-ES equipment

The Nite NEJ-ES equipment employs electrohydrodynamic atomization technology. By leveraging a high-voltage electric field to guide the tip of a high-speed jet to surpass the Rayleigh limit, it generates femtoliter (fL)-level droplets. This process enables the deposition of uniform and dense films with a thickness of ≥50 nm. It is primarily designed for the efficient preparation of high-viscosity materials and ultrathin film layers. The equipment can be equipped with arrayed printheads to meet mass production requirements. It holds significant application value in micro- and nano-optics, especially in solutions for ultrathin film layers in AR and VR.

more+

NEJ-EM Equipment

The Nite NEJ-EM printing equipment is equipped with multifunctional arrayed Electrohydrodynamic dot spraying, atomizing nozzles, and high-resolution single-nozzle heads, which can significantly improve printing efficiency. It is also used for high-resolution structure fabrication. The system features a closed printing atmosphere control system, providing a stable foundation for the printing process. Optional curing modules and loading/unloading modules can be added to form a complete process solution.

more+

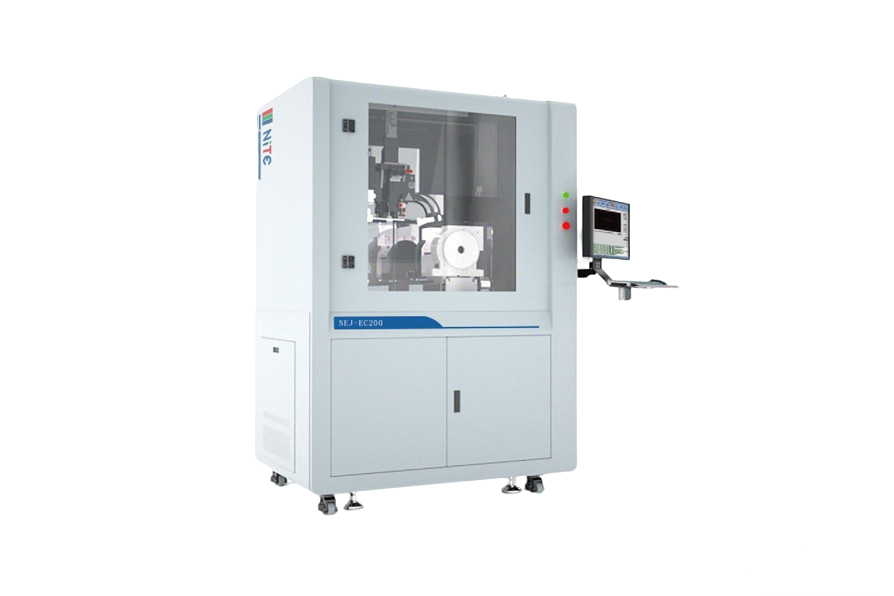

NEJ-EC Equipment

The Nite NEJ-EC electro-hydro dynamic printing equipment is suitable for printing curved surface structures. It combines electro-hydro dynamic technology with a five-axis platform, enabling high-resolution printing of micro-curved surface patterns and other structural designs. This is achieved by equipping high-speed vision systems, high-precision multi-degree-of-freedom motion platforms, and precision ink supply systems, among other functional modules. And equipped with high-precision positioning vision and multiple observation cameras, the platform's repeat motion accuracy is improved to the sub-micron level, enhancing the system to professional-grade micro-nano pattern printing capabilities.

more+

NEJ-EP Equipment

The Nite NEJ-EP equipment is a professional-grade electro-hydro dynamic printing equipment, primarily configured with a high-precision axis motion control system and a micro-nano motion platform, as well as a sub-micron level positioning observation system. This setup enables high-precision electro-hydro dynamic dot spraying and near-field direct writing processes. It is particularly suitable for the preparation and development of ultra-high resolution array microstructures such as MLA, and can also be used for the development of electro-hydro dynamic atomization processes to achieve sub-micron level film thickness formation. Depending on different customer requirements, a curved surface printing module can be added to enable curved surface printing.

more+

NEJ-EH Equipment

The Nite NEJ-EH Equipment is a high-precision Electro-hydro dynamic printing device, primarily configured with a high-precision axis motion control system, precision positioning and observation systems. It features complete electro-hydro dynamic dot spraying, spinning, and atomization process functions, with micron-level positioning accuracy, making it suitable for the preparation and development of high-resolution micro-nano structures. Applicable to various rigid and flexible substrates such as glass-based, silicon-based, and PC-based, and can be customized according to different customer substrate size requirements.

more+

NEJ-EB Equipment

The Nite NEJ-EB equipment is a desktop electro-hydro dynamic printing device. It has a compact structure and occupies a small space, making it particularly suitable for routine laboratory environments such as research and teaching institutions. It is equipped with electro-hydro dynamic dot spraying, spinning, and atomization process functions, and supports quick import and analysis of vector and bitmap images. It is compatible with a wide range of material viscosities, allowing for rapid verification of new material printing and process device applications.
